iKe

iKe is an experimental programming environment built on oK. It allows you to rapidly write event-driven graphical programs in K.

Output

To draw to the display, you must provide a definition of a monadic function, view or variable named draw. This will be invoked 30 times per second (see tr) and should return/consist of a list of tuples. Each tuple must contain a vector indicating an (x;y) position on screen, a palette and a bitmap. The palette consists of a list of strings representing any valid DOM color code such as “black” or “#FAC”. The bitmap is a matrix of indices into the palette. By default, the display is 160x160 pixels.

For example, the following definition of draw will draw a small blue on red box at a random position:

draw: {,(2?w;("#00F";"#F00");(1111b;1001b;1001b;1111b))}

Tuples will be drawn in the order they appear. For improved flexibility, any field of the tuple can be replaced with a symbol. Symbols will be looked up as variables when drawing. The above example could be rewritten as follows:

p: 2?w
c: ("#00F";"#F00")
b: (1111b
    1001b
    1001b
    1111b)
draw: {,`p`c`b}

Observe how in the first example the box is drawn at a different position every time, but in the second example it is drawn in a consistent position as 2?w is only evaluated once and then stored.

If the “position” element of any drawing tuple is a matrix instead of a vector, the bitmap will be drawn several times at each (x;y) pair. This makes it very easy to draw many identical objects simulatenously:

draw: {,((5 5;30 5;18 20);`lcd;text@6)}

If the “position” element is null, the bitmap will be drawn centered on the screen:

draw: ,(;cga;50 30#2)

If the “palette” element is null, the bitmap will be drawn using the built-in palette cga:

draw: ,(;;t+\:t:3!-20!!160)

If the “bitmap” element of any drawing tuple is a number or a vector, it will be drawn as a single pixel or a horizontal strip of pixels, respectively. Drawing single pixels in this way is generally quite inefficient, but drawing horizontal strips in combination with a vector of positions can produce some interesting “rasterbar” effects.

If the tuple does not contain a bitmap, it represents drawing a filled polygon. The 0th palette color will be used for drawing the edges of the polygon (stroke) and the 1st palette color will be used to fill the polygon:

draw: ,((10 10;20 10;15 20);cga@3 2)

If you try to draw a polygon without specifying any coordinates, it represents clearing the screen. The following example will fill the screen with a red background:

draw: ,(;("blue";"red"))

Ticks

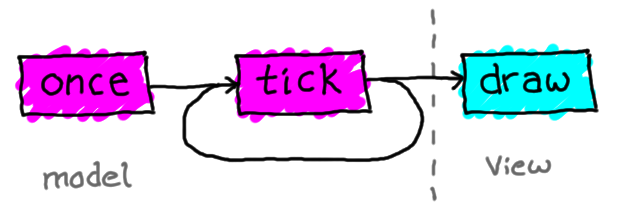

If you define a monadic function tick, it will be called periodically based on tr. Often this function will mutate surrounding state to be drawn by draw. The input to tick will, on the first frame of a program, be the contents of a variable named once, and the result of executing tick will then be stored in once. When draw is called, the value of once is likewise fed in. For convenience, if once is not explicitly initialized it will be treated as an empty list. Consider the following example:

once: 10 15
tick: {1 2+x}
draw: {,(x;;5 5#3)}
Tick Lifecycle
Tick Lifecycle

By using this approach it is possible to write programs with evolving state using only pure (side-effect free) definitions of draw and tick.

Sound

To add sound to your programs, define a monadic function or variable named play. Sound playback further requires a definition of draw. iKe plays waveforms at a sample rate given by the variable srate with samples in the range [-1.0, 1.0]. If play is a list or scalar it will be repeated as necessary to supply continuous audio:

draw: ,(;;)
play: .2*?500 / a short noise sample

If play is a function, it will be called with a single argument indicating the number of samples which have been produced since the program started. This function will be called periodically whenever the audio subsystem requires more samples. For best performance, it is a good idea to produce a number of samples on each call and return them as a list, rather than one at a time. Here’s an example which plays a sine wave:

draw: ,(;;)
play: {.2*sin .2*x+!1000}

Input Events

For dynamic behavior, iKe will call a number of K functions (provided they have been defined) whenever certain events occur:

Built-in Functions

iKe extends the basic k5 intrinsics sin cos log and exp with a broader range of math and utility functions:

Variables

iKe pre-defines and updates several K variables for your convenience:

iKe provides a number of pre-defined palettes. Since transparency is useful, the last color of most palettes is fully transparent:

palettes
palettes

iKe also provides a built-in 8x8 character set called text:

,(;cga;~,/'+text"Hello, World!")

The character set is aligned with 7-bit ASCII and control characters are replaced with some useful graphic characters including symbols and box drawing characters:

font
font

External Resources

Sometimes you may wish to include large resources in a sketch without creating a bulky matrix literal. iKe has a facility for loading images from a specified URL. Create a comment at the beginning of a line which starts with “/i” to load an image. After “/i”, specify the name you wish to give the image, a semicolon, the name of a built-in palette, a semicolon and then the URL where the image may be found.

When your program is run, these special comments will be processed and the resources will be unpacked into K’s environment. iKe makes a best-effort (least sum-of-squares per-channel difference) attempt at converting colors in the image into the specified palette when it is loaded.

/i blu;solarized;http://i.imgur.com/IVfDjMj.png
draw: ,(0 0;`solarized;`blu)

Note that image loading only works with built-in palettes- image loading happens before any of your K code has a chance to execute!

Ajax

Your programs can perform asynchronous HTTP requests to remote servers which return appropriate CORS headers. The ajax function takes three arguments: a URL, an HTTP verb and some K monad which will be called with the result of the request when it becomes available. Server response bodies will be parsed as JSON and then converted into convenient K data structures.

ajax["http://www.com/api.json";"GET";{ dosomething x }]

Animated GIFs

The “record” button asks iKe to render an animated GIF of the program’s output. The result will have fc frames, which will each have an interframe delay which respects tr. Note that the resulting GIFs may be very large- consider running them through an optimizer like Gifsicle.
